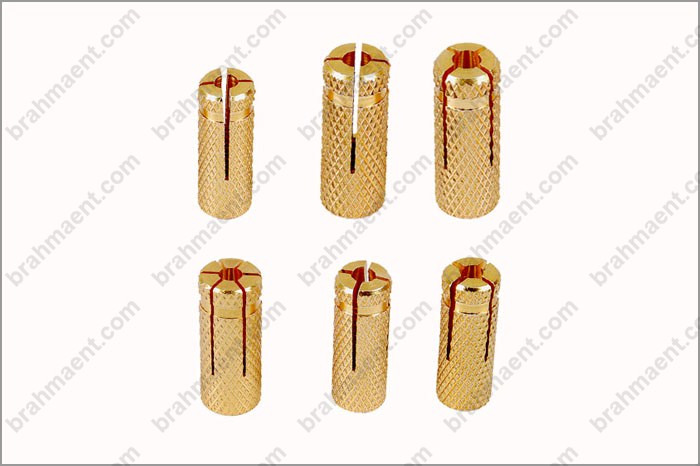

Brass Anchors

Product Chart for Brass Anchors

Thread Size M4 M5 M6 M8 M10 M12 M14 M16
Outer Dia (mm) 5 6.5 8 10 12 15 18 20
Full Length (mm) 15, 16 20 22, 23, 25 28, 30 32, 35 38, 40 43, 44 45


Process


  • Corrosion resistant and hence can be used in all environments
  • Embossed surface provides extra grip
  • Inside conical shape ensures equal expansion of segments while screwing
  • Very useful in building material viz. concrete, brick, natural stone and also in wood
  • Temperature resistant
  • Simple and easy to apply

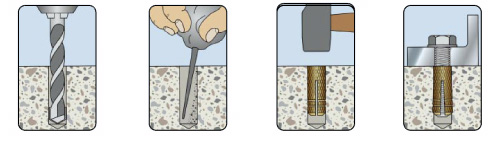

:: Installation ::
  • Drill a hole as per the external diameter of Brass Anchor
  • Hammer the Anchor into the hole
  • Take a required bolt for screwing
  • Fix it with suitable spanner
:: Application ::
  • Used for all light and medium duty fixing in Building Industry. For e.g. : Electrical, Sanitary Installation work, Air-conditioning, Mounting of suspended ceilings, Heating systems etc.
